A storefront sign can look clear from across the street and nearly disappear when someone approaches along the same sidewalk. From that angle, the face above the door may be almost edge-on. A lightbox blade projects from the facade, turning an illuminated face toward people coming from the side.
The practical question is whether your storefront needs that combination of angle and light.
The short answer: Consider a lightbox blade when customers need to recognize the business from a side approach during dim or evening hours, and the property and site team can review a projected cabinet in a workable location.
A fascia sign may be more useful when the important view is head-on. An unlit blade may be enough when the side view matters only in daylight. Lighting cannot fix a view blocked by an awning, tree, column or neighboring sign.
Choose a lightbox blade when angle and light both matter
Start outside, not in a product catalog. Walk toward the storefront from every direction customers actually use. Notice when the entrance comes into view, when the main sign becomes readable and how long a projecting face would remain visible.
Do the walk during normal customer hours. The useful test is not whether an illuminated blade looks attractive in isolation. It is whether the sign would help a person find this entrance sooner.

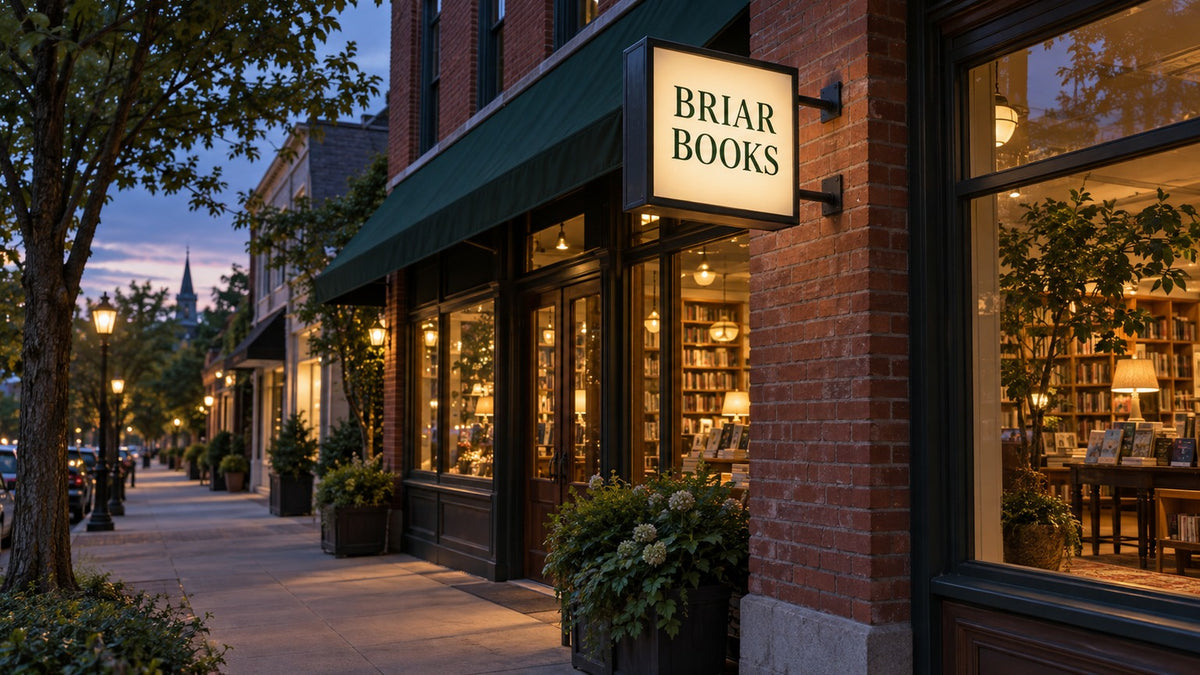

Picture a narrow shop between two larger tenants. The sign above the door reads well from across the street, but a person coming from the train sees mostly its edge until reaching the storefront. A projecting face could present the name earlier.
Internal illumination matters only if that earlier recognition is also needed at dusk or after dark. Those two needs together make the lightbox blade worth investigating.
Look for interruptions along the route. A tree canopy may block the first half of the approach. A deep awning may hide the cabinet from one direction. Parked vehicles, columns and neighboring projecting signs can also shorten the useful view.
The two approaches may be completely different: transit traffic may see one face for most of the block while the other face looks toward a wall.
A business that closes before dark may still prefer an illuminated look, but that is a brand choice rather than evidence of an evening wayfinding problem. Keep the reason honest because it affects which alternatives deserve comparison.
For a broader discussion of projecting storefront formats, see Blade Signs for Storefronts: When to Use Them. This decision is narrower: will a projected, internally illuminated cabinet solve a real approach-and-hours problem at this address?
Decide what each side needs to show
Single-sided and double-sided describe the cabinet, but the decision begins with the routes around it. A store near a corner may need its name read mainly by people arriving from one direction.
A business on a two-way pedestrian street may need the same name on both outward-facing sides. Map those routes before requesting prices, then ask the provider to show which face each person would see.
When both directions matter, repeating the approved artwork is usually easier to review and replace than putting different graphics on each side. If the concept calls for different faces, confirm that the proposed construction and proof process support that choice.
A one-sided sign does not disappear when viewed from behind. People on the opposite approach may see an unlit back, the cabinet edge or a finished panel. Ask to see that surface from the route that faces it.
A lower-priced one-face proposal may be a poor fit when the unseen side in the sales rendering is prominent on the actual street.
The reverse is also true. A second illuminated face adds little when it points directly at a wall or into a service passage. Compare real assemblies rather than assuming that one face is always lighter, cheaper or easier to approve.
Review separate approach views at a consistent scale, along with a simple plan view. Check the exact artwork orientation on each face. An angled beauty rendering can hide foreshortening or make both sides appear more useful than they are.
Treat these images as visibility aids, not installation drawings or promises of installed appearance.
Keep the cabinet envelope honest
A lightbox blade is more than the glowing rectangle shown in a front proof. It has faces, an edge, visible depth and a proposed support. That depth affects how the sign looks along the facade and how much of an assembly the site team must review.
An article cannot determine the right cabinet depth, lighting system or support for a particular building.
Ask for front and side views at the proposed location. The concept should show overall dimensions, visible cabinet depth, faces, trim and the complete bracket or support direction. A close-up of the lit face can hide the scale beside the entrance.
A thin line on a storefront image can hide the projecting edge.
Check the cabinet with the lighting on and off. The name should have enough room to read without crowding, and both faces should use the intended openings. The unlit appearance matters because customers will see it during the day and whenever illumination is off.
Detailed face production, replacement methods and final artwork belong in the provider's proof and written scope.
The cabinet may work as a deliberate brand object, or it may feel too heavy against a delicate facade. Judge it against the whole storefront, including the primary sign, windows and neighboring tenants. More glow will not restore reading room in an undersized box.
A larger box is not a solution if the property will not accept its envelope. When the face and the site are fighting each other, ask for another size, another location or another sign direction.
The Lightbox Signs for Businesses guide covers other cabinet applications. Here, the cabinet is part of a projecting assembly, so its depth and support remain part of the decision.
Put the wall, power and weather questions together
An illuminated cabinet projecting from a building asks more of the site than graphics applied to glass. The wall area needs review for an appropriate support solution, the sign needs a workable power arrangement, and the proposed construction needs to suit its exposure.
None of that can be confirmed from a storefront photograph. An old bracket or nearby outlet is a reason to investigate, not proof that a new sign can use it.
Provide wide and close photographs of the proposed area, plus any property drawings the owner can supply. Ask what wall and bracket information the concept assumes and who will verify it. A finish may conceal another assembly.
A neighboring sign may rely on support that is invisible from the street. Qualified project parties must establish the actual attachment approach. This article does not prescribe hardware, loads or structural adequacy.
For power, find out whether anyone has confirmed a suitable source near the proposed location. The quote should state what it assumes about routing, controls and responsibility for regulated electrical work.
A neat line on a rendering might cross landlord-controlled finishes or space belonging to another tenant. A qualified electrical party and the property team must decide what is possible and permitted at the address. Do not open equipment or plan wiring from a product image.
Exposure matters too. A cabinet extending beyond the facade may meet rain, wind-driven water, sun and debris differently from a sign under a protected band. Ask what exterior construction and finish the provider proposes, how the cabinet and faces are closed, and what inspection or upkeep is recommended.
The word "lightbox" does not establish a weather rating, maintenance interval or warranty. A covered arcade and an exposed corner are different sites.
If the pedestrian view is strong but the support or power route remains uncertain, keep an unlit blade or another location in the comparison until those site questions are resolved.
Imagine the first service visit before approving the look
The most neglected view is often the one a service worker will need later. A face can be damaged, a light source can fail, or the business can rebrand. Ask where the cabinet opens, which parts can be removed and whether the proposed location leaves practical working access.
These details depend on the quoted construction. Not every lightbox blade opens the same way or comes down by the same method.
A cabinet over a deep canopy may look perfect from the sidewalk and be awkward to reach. Cafe tables may sit below it. A shared retail property may require an escort or limited work hours near the facade.
Such conditions can affect the ongoing practicality of a location even when the initial installation can be arranged. The site team chooses safe work methods. The buyer should make sure later service has been considered and priced clearly.
Ask whether a damaged face can be replaced without replacing the cabinet and what files or specifications the provider would need to reproduce it. Do not assume that every cabinet can be re-faced quickly or cheaply.
Written terms should explain the covered parts and labor, whether access equipment and travel are included, and who handles a lighting failure compared with graphic damage. Saying that a sign uses LEDs does not answer any of those questions.
For a two-face cabinet, confirm whether each face is separately serviceable. Keep the approved artwork, proof version and cabinet description with the project records. Those files can save time later, but they do not replace an inspection of the actual installed condition.
Compare the real alternatives, not catalog silhouettes
Put an unlit blade, an illuminated projecting cabinet and a revised fascia or entrance sign against the same business name, position, approach and operating hours. That makes the comparison about the job each sign would perform rather than about three unrelated product images.
| Option worth discussing | When it earns a closer look | What may make it a poor fit | Evidence to ask for |
|---|---|---|---|
| Non-illuminated blade | The side approach matters mainly in daylight | The name also needs recognition after dark without enough ambient light | Daytime view from the same approach, plus the proposed face, back and edge |
| Lightbox blade | Side-on recognition matters in dim or evening conditions, and the site may accommodate a cabinet | The approach is blocked, the proposed wall or power path is unsuitable, service is difficult, or the property restricts it | Both approach views, lit and unlit appearance, complete cabinet and bracket view, and written site assumptions |
| Revised fascia or entrance sign | Head-on identification or final door confirmation is the actual gap | The sign remains nearly edge-on along the important route | Whole-frontage view and a test from the first useful recognition point |
A flat illuminated lightbox faces the street. A blade addresses travel along the building. An unlit blade may solve the angle without adding lighting and service needs.
Night renderings deserve restraint. They often darken visual clutter and make the sign appear dominant. A real dusk view may include window reflections, neighboring light and an awning that covers part of the cabinet.
Review the sign with lighting off as well. A rendering can compare design intent, but it cannot establish brightness, reading distance or installed appearance.
On a multi-unit frontage, the blade may identify the entrance from down the sidewalk while the fascia sign confirms arrival at the door. That is a useful division of labor.
Repeating the same message in both places without a defined purpose adds clutter rather than guidance.
Check permission before treating a concept as an order
The person operating the storefront may like the proposed position while the landlord controls the facade, an association controls the streetscape, or a local authority reviews projection and illumination. Request the current property sign criteria for the unit and the proposed sign type.
Confirm whether an illuminated projecting cabinet is allowed in principle, whether faces or operating hours are restricted, what submission views are expected and who can approve changes to the wall. A neighboring tenant's old sign is not permission for a new one.
Sign, building, electrical and public-way requirements depend on the address and design. Ask the appropriate local office and qualified project parties which reviews and documents apply. A landlord's appearance approval is not a permit.
A provider's drawing is not an engineering conclusion. If review changes the permitted position or cabinet envelope, return to the approach views and check whether the revised sign still solves the original problem.
Keep bracket details, pedestrian clearance and permissible projection visible as open site questions until the responsible people verify them. A conditional concept can support a decision. Unknown wall conditions and unresolved permission do not authorize fabrication or installation.
Ask what the provider will support in the approval process and what remains with the owner or local specialists. "Permits included" is too vague unless the written scope identifies drawings, filing, responses to changes, fees and responsibility for follow-up.
A preliminary supply price may still be useful, provided everyone understands which property, electrical, structural and site checks remain open.
Give providers one brief and review one proof version
Send each provider the same inputs: approved business name and artwork, storefront address, operating hours, current property criteria, a wide facade photograph, a close wall photograph and views from both pedestrian approaches.
Include a dusk or evening view when those hours matter. Mark the proposed position and say which direction needs earlier recognition. Separate observations from unknowns. "Power source not verified" is more useful than a guessed route.
Request single- and double-sided pricing only when both are plausible for the site. Each proposal should describe the face or faces, daytime appearance, cabinet shape and depth, visible support direction, intended illumination, exterior treatment and service method.
Ask for front, side and separate approach views. The provider should identify provisional dimensions and site assumptions, along with the checks required before production.
Compare written scopes line by line. One proposal may include a survey, property drawings, submission support, installation access and regulated electrical work while another covers only fabrication. Ask who confirms the power route, arranges access and handles later service.
Review the written coverage for faces, finishes and lighting components. If the scopes differ, request revisions before choosing the apparently cheaper option. An online product category does not prove that any particular site service is included.
Treat the final proof as a decision record. Verify the exact name on each face, which side addresses each approach, lit and unlit appearance, the cabinet edge beside the building and the position of the primary entrance.
Match the depicted unit to the written construction and quote. A generic night image can approve a mood, but it cannot approve a particular cabinet, support, orientation or service route. Record the proof version and every property or site condition still open.
Explore Signage.com's Lightbox Signs collection to understand the format direction, including the lightbox blade category, then bring the approach photographs and this brief into the project conversation.
Choose the combined format only when both benefits matter at the site: a useful perpendicular view and an illuminated face needed during relevant hours. Keep support, power, service and permission open as named project checks until the responsible parties have answered them.
